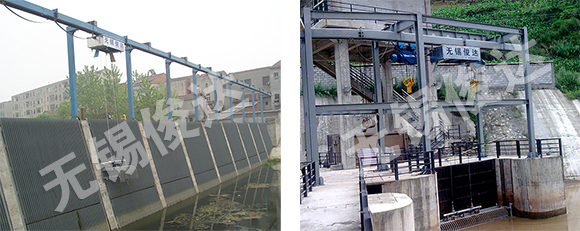

GD type grab mobile (suspension) full automatic trash cleaning machine
| GD grab mobile trash cleaning machine is a kind of energy saving and effective mobile grille trash cleaning
equipment, which is widely applied in the intake of many water conservancy fields ■ Power station: (thermal power station, hydropower station, nuclear power station) ■ Water supply and drainage pump station ■ Sewage and rainwater discharge place ■ Tap water plant intake ■ Riverway gate discharge place ■ Sewage treatment plant  GD grab mobile trash cleaning machine breaks the design of the traditional model. It possesses the innovative design concept in China, applies several advanced technologies and develops the new generation of grille cleaning equipment. Its unique suspension guide rail design could make the machine maximally meet the requirements of various sites and spaces. Thanks to its novel design, and simple and reasonable structure, it's not necessary to damage the current structure and civil engineering. Furthermore, it could reduce the investment in civil engineering and is an ideal selection to replace the current system and equipments. GD grab mobile trash cleaning machine mainly includes:
 Electric control systemElectric control mode (C): Manually operate through button box switch; Remote control mode (B): Complete each working process through the remote control system; Full automatic control mode (A): Perform through the time or liquid level difference system; Loaded pulley The loaded pulley (moving vehicle) includes all the drive equipments of the trash cleaning machine. Hoisting reducing motor: control the rise and fall of the grab through the roller of the cable. Grab device: control the open and closed status of the grab through the hydraulic system power. Traveling system: control the horizontal operation of the pulley through the drive of the speed reducer. The grab is suspended below the moving vehicle, which is installed with particular tension system for balance and to ensure the stable and reliable travel of the moving vehicle. Support, rail The structure of the support and rail is mainly to satisfy the travel requirements of the loaded pulley. The direction trace of the track could maximally meet the requirements of site space. The support guide rail could be installed either on the ground or wall, to save the civil work investment. The track directly bestrides on the above of the intake and all the electric cables are laid in the track. The whole appearance structure is simple and clean and the equipments are stable, reliable, and easy for maintenance.

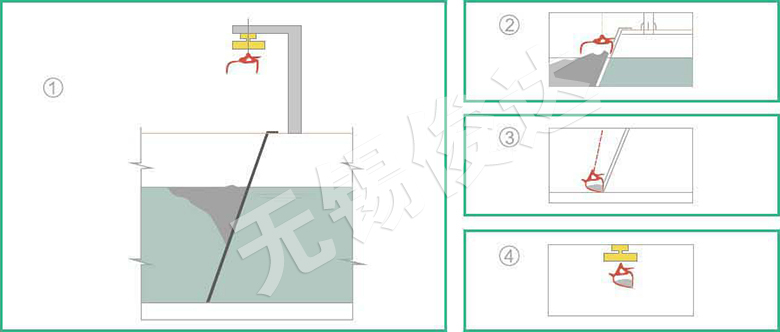

 ■ High price to performance ratiorits working efficiency equals the combination of three traditional machine, namely dirt removal system, conveying system and discharge system. Operation process  Main technical parameters
 |
